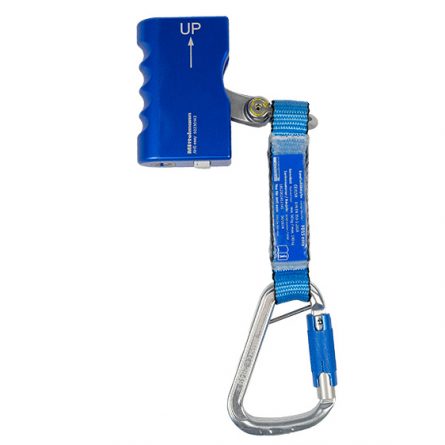

Fall Arrester Device AH5

The AH5 guided type fall arrester for fall arrest systems with fixed guide is suitable for fall protection on vertical ladders and step ladders in conjunction with a safety harness in accordance with EN 361 for different working conditions, provided that the Ø 8 mm steel wire rope is correctly attached in a vertical position in accordance with the AH5 arrester system installation instructions.

Features

• with Trilock carbiner
• easy handling
• unmistakably correct attachment to the wire rope thanks to integrated reverse lock
• can be detached and connected at any position
• moves freely upwards and downwards, clamps to the wire rope in the event of a fall
• Stainless steel housing, hardened steel jaws
• for middle man wire rope Ø 8 mm

Standards

• DIN EN 353-1: 2002
• VG11 CNB/P/11.073

Details

• permitted weight: 130 kg
• weight: kg

HS-code

• 84797900

ID-number

• 109228
